Menci Grapar TSA 105 PED NEW | 31,000 l | 3 Compartments | Pressure Tank | ATP | for €89,000

New vehicle – individually configurable according to your application requirements.
PED-certified stainless steel pressure tank for the professional transport of sensitive liquid products.
Designed to meet the highest standards in safety, hygiene, and quality.

--- Highlights ---
• PED pressure tank compliant with EU 2014/68
• Total capacity: 31,000 liters
• 3 compartments for flexible product separation
• Tank made of AISI 304 L stainless steel, internally polished
• ATP-insulated – suitable for temperature-sensitive products
• CIP cleaning system combined with compressed air system
• High-quality SAF chassis with lift axle

--- Technical Data (Excerpt) ---
• Total tank capacity: 31,000 liters
• Compartment division: 12,500 l / 6,000 l / 12,500 l
• Operating pressure: 2.0 bar
• Design pressure: 2.2 bar
• Test pressure: 3.5 bar
• Compartments: 3, with cone-bottom valves DN 100
• Certification: PED EU/2014/68 (simultaneous pressurization of all chambers)
• Axles: SAF INTRADISC PLUS, disc brakes Ø 430 mm
• Lift axle: 1st axle, fully automatic, load-dependent

--- Standard Equipment (Excerpt) ---
• Grapar brand tank, AISI 304 L stainless steel
• Internal polish to Code 1 – food-grade standard
• Pressure manhole DN 500 with safety valves
• Stainless steel manhole boxes with insulated doors & drain
• CIP cleaning system with 5 removable spray heads
• Compressed air system with air reservoir & process filter housing
• Left-side catwalk made of anodized aluminium with folding stainless steel handrail
• Folding stainless steel access ladder
• Gravity discharge through insulated outlets

--- Chassis & Safety ---
• Frame made of fine-grain steel, fully hot-dip galvanized
• SAF 3-axle unit, disc brakes
• WABCO EBS braking system (2S/2M) including stability program
• Automatic lift axle control with starting aid
• Air suspension with automatic level regulation
• Spray guard system in accordance with EU 109/2011
• Rear underrun protection according to ECE-R58R03
• ASPÖCK LED lighting system

--- Included Options / Equipment ---
• SPEEDLINE 22.5" aluminium wheels
• Premium tires 385/65 R22.5
• Stainless steel toolbox & sterile box
• Spare wheel carrier including mounting kit
• Stainless steel collector & reducers
• Additional cleaning and ventilation connections
• Chassis color MB 7350 Novagrau
• Complete ECE signage & reflective marking

Additional equipment and custom configurations available upon request – we configure your vehicle exactly according to your specifications.

Bcsdpfsypa Hhsx Af Tsw

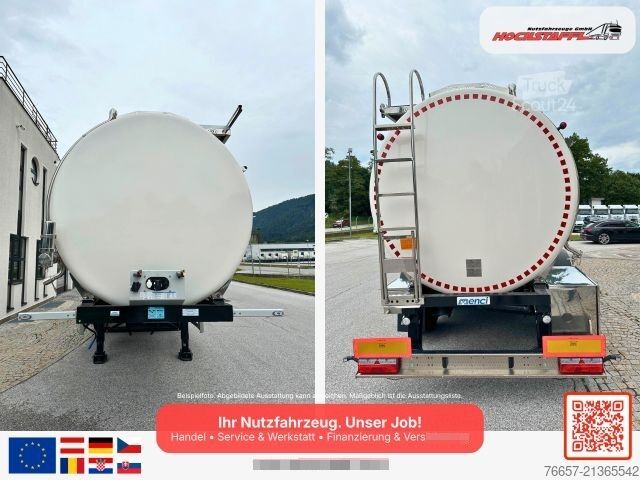

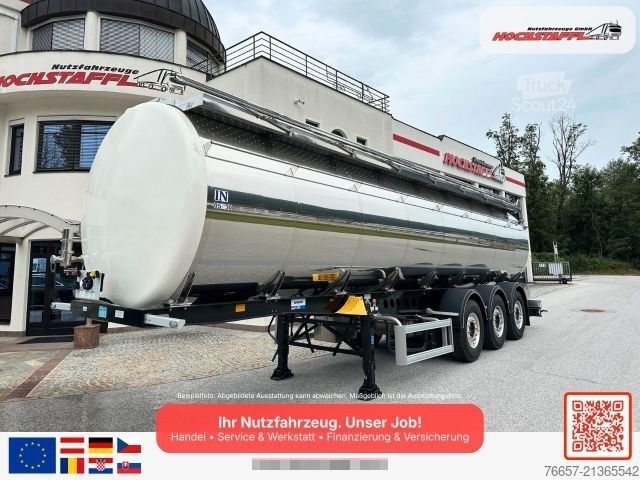

Sample photo. Equipment may vary depending on configuration.
