Полуприцеп с подвижным полом

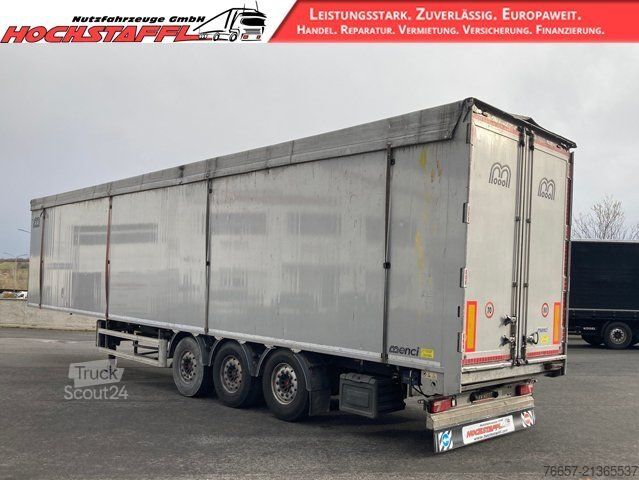

MENCI Schubbodenauflieger 92m³ SM136A

Ø Standard model, suitable for transporting dry bulk goods and palletized loads
Ø Chassis made of STEEL, pre-equipped for Cargo Floor
Ø First axle is a lift axle
Ø 3 SAF rigid axles, 9 tonnes each, with 430mm disc brakes

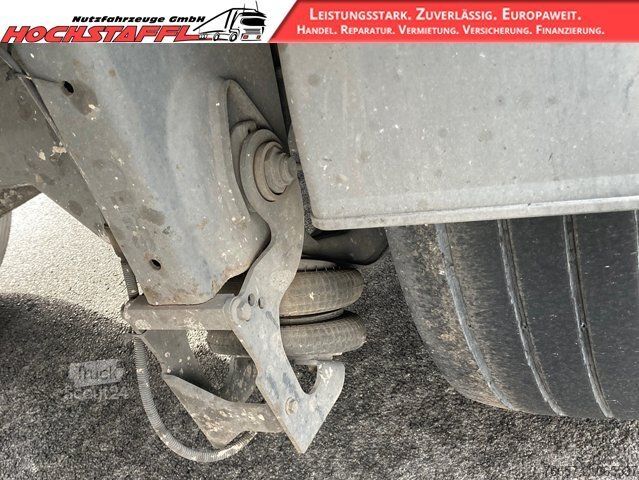

Ø Air suspension with manual lift/lower valve
Ø Support legs with universal foot (flat plate + half wheel)
Ø EBS WABCO braking system 2s/2c
Ø ADR-compliant electrical system
Ø Pneumatic parking brake
Ø Wheel chocks and brackets
Ø Side underrun protection
Ø 6 PVC mudguards
Ø 2 PVC toolboxes
Ø Internal dimensions:
Length: 13,542 mm - Front height: 2,660 mm - Rear height: 2,814 mm - Width: 2,475 mm, Volume: 92 m³
Ø External dimensions:
Length: 13,665 mm - Width: 2,542 mm - Height above ground: 4,000 mm, Fifth wheel height: 1,150 mm, Gross weight: 39,000 kg
Ø Moving floor:
CF500 Cargo Floor (moving floor system) with 21 aluminium planks, 10mm thick, standard type (smooth, longitudinally ribbed)
Ø Rear end of the floor (approx. 300 mm) made of stainless steel, approx. 4mm thick
Ø Remote control in a waterproof control box
Ø Max. pressure relief valve (225 bar) and high-pressure oil filter
Ø Plank movement: 200 mm/cycle
Ø Subframe:
Ø Fully made from extruded aluminium profiles (cross members)
Ø Moving floor supported longitudinally by aluminium tubes
Ø Corrosion protection provided by polypropylene sheets installed between aluminium and steel
Ø Front wall:
Ø Made from 600/30/3/2 mm aluminium profiles, with reinforced upper profile
Ø Front walk-on platform with 2 ladders for operating the side curtain
Ø Connection bar (with sockets) for braking system, lighting, and hydraulics
Bcedpfx Afjypa Dyj Tjw
Ø Upper square reinforcement plates between front and side wall
Ø Movable partition:
Ø Made from aluminium profiles and tarp bead at floor, with reinforced strips for tarp fixing
Ø Sliding bulkhead, mounted on carriages with slide bearings on 2 rails
Ø Side wall:
Ø Made from 600/30/3/2.5 mm aluminium profiles, welded on both inner and outer contours
Ø Upper surrounding profile, with rail for the mobile partition
Ø Rear frame:
Ø Made from aluminium profiles, with 2 doors from 600/30/3/2.5 mm aluminium profiles, 50 mm surrounding door profile, double sealing
Ø 4 aluminium hinges with galvanized pins, vertically aligned with handle
Ø Each door with fully bolted stainless steel lock and vertical rod
Ø Rotating one-piece upper rear crossbar
Ø Safety device for unlocking doors (pneumatically operated)
Ø Roof:
Ø 4 removable roof bows
Ø Curtain fastener straps vertical, with 4 lateral tensioning straps
Ø 2 tension straps along the full length
Ø Tarp 900 g/m²
Ø Right curtain attached by rivets along the perimeter profile
Ø Chassis color: SILVER GREY (MENCI)
Ø Body color: MENCI SILVER GREY
Ø Curtain color: RAL 9006
Ø Standard accessories:
Ø 4 safety hooks for tarpaulin
Ø Bracket for shovel, broom, and rake
Ø Manometer for load control (63 mm diameter) in moving floor control box
Ø Compressed air gun connection on the left rear side
Ø Prepared for tarp roller (floor tarp) at rear
Ø Rear foldable protection for tail lights
Ø Additional special equipment:

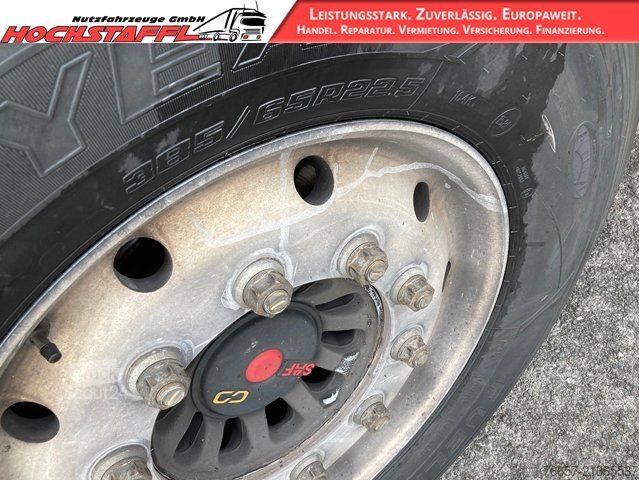

Ø 6 SPEEDLINE light alloy rims 385/65 R 22.5, ET 120
Ø RADIO REMOTE CONTROL

All information subject to change. No liability for possible errors.
