Рефрижераторный полуприцеп

KRONE SDR27eL4 ThermoKing SLX300 5777h Blumenbr Doppel

WhatsApp
KRONE SDR 27 eL4-ThermoKing SLXi300-50 Wide Flower Double Deck Pallet Box!!!
5777h Diesel
1h Electric
9805h Total
German Vehicle, 1st Owner!!
Fifth-wheel load: 12,000 kg
Axle load (technical): 27,000 kg
Gross weight (technical): 39,000 kg
Unladen weight: approx. 9,100 kg
Coupling height (unladen): 1,150 mm
Axle distances: 1,310 / 1,310 mm
Clear internal length: 13,310 mm
Clear internal width: 2,495 mm
Clear internal height: 2,650 mm
Technical description:
Continuous chassis construction with double T longitudinal beams and cross members
Rear cross member with diagonal bracing
Ledpfxsxqi S Ue Ab Seah
Reinforced rear underrun protection
Round tube rear underrun guard
Rear sliding step ladder
Front build height: 10 mm
Mechanical landing gears, 2 x 12 t, compensating round half foot with JOST base plate

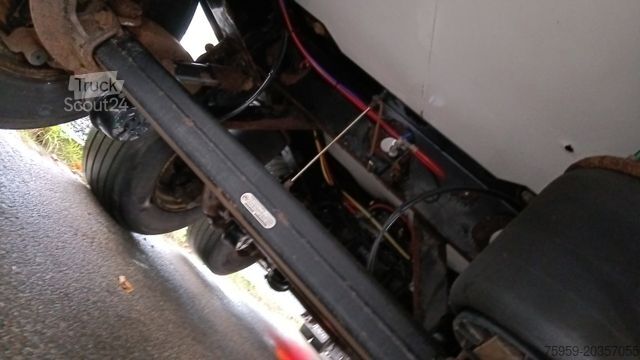

3x 9t BPW Eco low-maintenance axles with air suspension and disc brakes, offset 120
Lifting and lowering system including automatic ride height reset
Automatic LIFT AXLE with starting aid (pin 12)

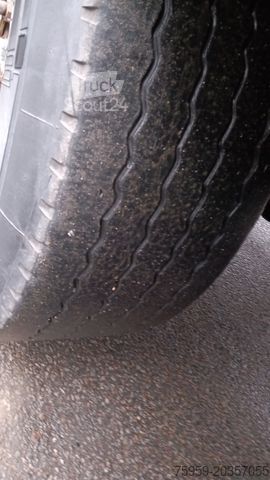

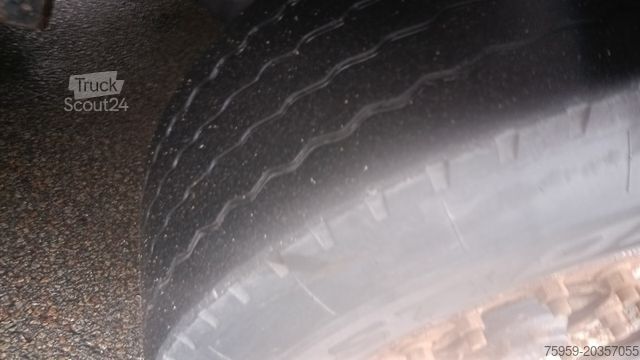

Tires: 6 pieces, size 385/65 R 22.5 (2x30%, 2x40%, 2x50%)
Plastic wheel cover with splash protection as per EC directive
Brake system according to ECE Regulation 13 (incl. vehicle stabilization function)
Spring-loaded parking brake
EBS system 2S/2M, 2 sensors KNORR
Diagnostics via ISO 7638 connector (EBS supply cable)
Lighting and signaling system in accordance with UN ECE 48

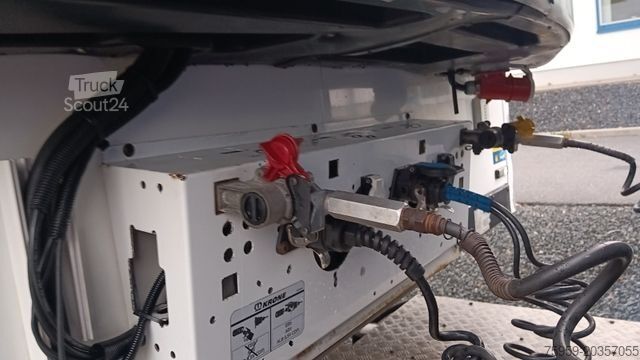

Two 7-pin sockets DIN1185/3731 + 15-pin with premium distribution
License plate, outline, and side marker lights in LED version
Multifunction rear lights including rear fog lamp and 2 reversing lights
Plastic diesel tank, approx. 240 L
36-pallet box, closed
PVC toolbox
Low-noise aluminum floor tray, floor load capacity according to EN283 up to max. 5,500 kg fork axle load
Additionally reinforced in rear area
Box body in thermal-bridge-free panel construction
Panels double-sided with steel cover layers, painted outside, PVC coated inside
100% CFC-free foam
Floor 125mm
Front wall 50mm
Side wall 45mm (FLORAL WIDTH)
Roof as sandwich panel
LED ceiling lights
Contact switch for interior lighting via roller door
Front wall as sandwich panel
Floor connection with wear-resistant aluminum angle skirting
4 vertical aluminum spacer profiles inside for optimal air circulation
Deflection plate inside the front wall screwed on

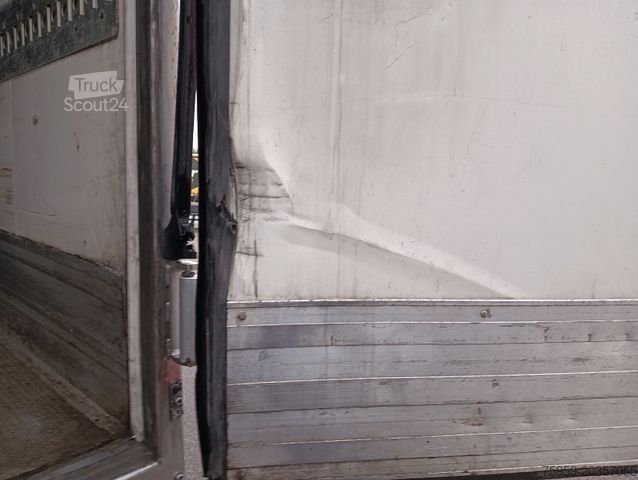

Side walls as sandwich panels
1 row of slotted hole lashing rails approx. 800mm height

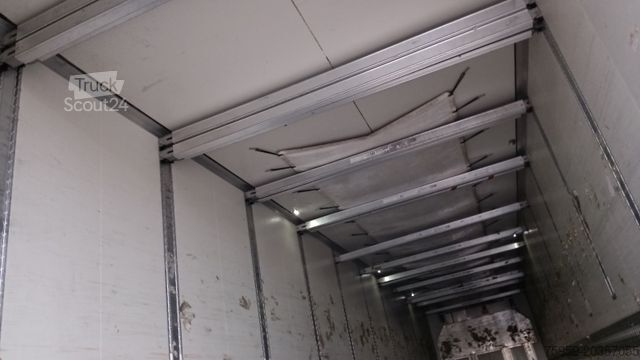

12x double deck beams Airline 50mm perforated pattern with 22 crossbars
Floor connection with wear-resistant aluminum angle skirting

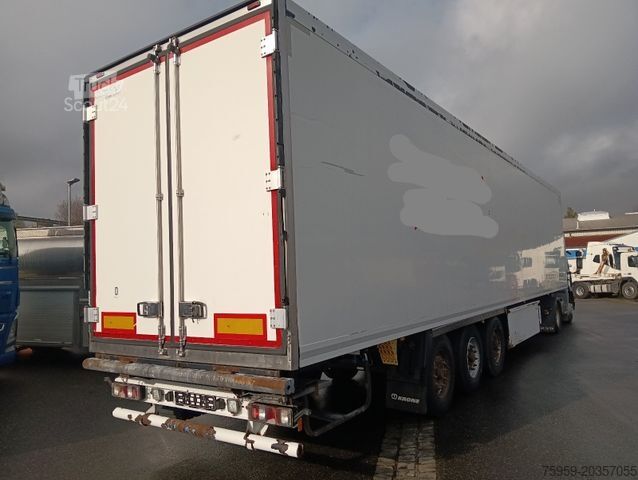

V2A portal frame with 2 insulated rear doors, V2A rotary bar lock
With dock seal edge
Hanging air curtain
ATP certificate, load securing certificate Code XL

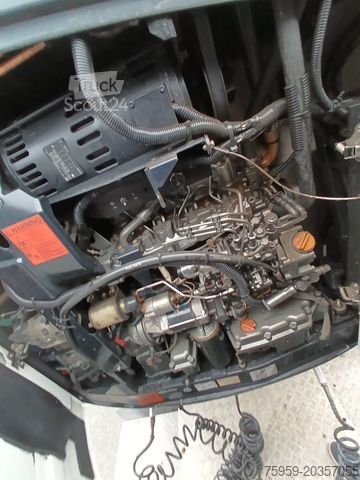

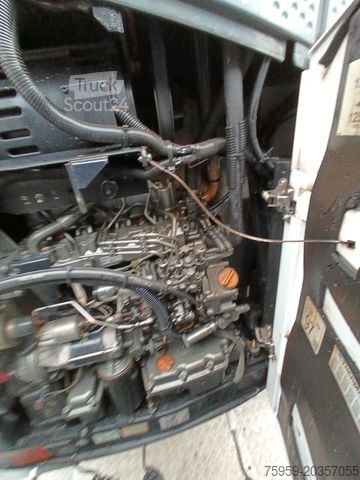

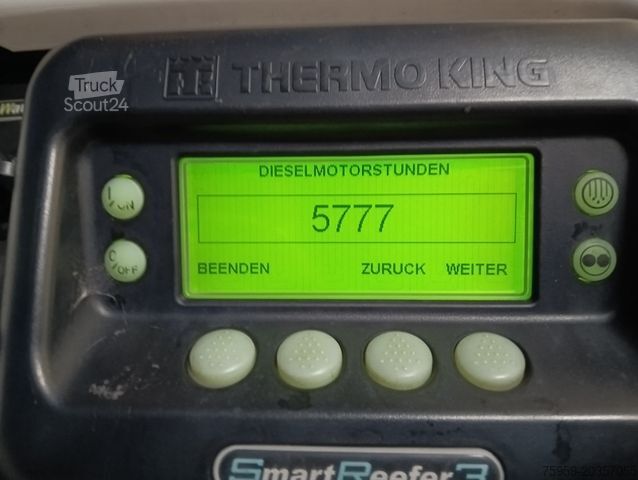

Refrigeration unit Thermo King SLXi 300 50-2 (5777h diesel / 9805h total)
Status light kit triple combo
Steel parts shot-blasted, KTL primed, and high-quality surface coated
Axles including wheel hubs in KTL black
Underrun protection and light carrier coated in safety color white
Disc wheels silver
Attachment parts black or galvanized
Laminate coating colored in RAL 9010 pure white
Contour marking as per ECE-R48
TÜV / General inspection SP+ NEW on request
2x air tanks new
4x shock absorbers new
2x brake pads new
Condition GOOD according to age and mileage!
Complete trailer workshop tested!!

Delivery possible at extra cost

All details without guarantee!
Sale only to tradespeople or for export!
NOTE: PRICE IS NET PLUS
