Автовышка

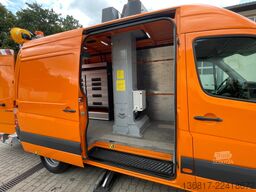

MERCEDES-BENZ Sprinter II 516CDI mit Versalift Bühne VT-140-F

SN: 32

Mercedes Benz Sprinter II Van 516CDI with Air Conditioning and Versalift Platform VT-140-F, Working Height: 14.20 m / Lateral Reach: 8.60 m - 120 kg / Turret Rotation: 420°

Engine: 2.1 L - 120 kW CDI, Catalytic Converter, 6-Speed Manual Transmission

Aerial Work Platform: Two supports with a support width of 2,450 mm (outer edge of platform), Regular Inspection: 02/2027, Year of Construction: 2012, Includes RENO Compressor

Manufacturer: Versalift,
Type: VT-140-F,
Lateral Reach: 8.60 m / 120 kg,
Lateral Reach: 7.80 m / 200 kg,
Lateral Reach: 7.20 m / 265 kg,
Maximum Platform Load Capacity: 265 kg,
Weight of Aerial Work Platform: 1,040 kg,

Van Conversion - Standard Base:
Nedpfxezpgiuj Ag Ijcw
Height to Platform Floor: 12.20 m,
Working Height: 14.20 m,
Height in Driving Position: 3.50 m,

Hydraulic System:
Operating Pressure: 185 bar,
Flow Rate: 22 l/min,
Power Source: Auxiliary Drive for Pump

Boom:
Outer Boom: -4° to +80°,
Extension of Inner Boom (unlimited): 2.60 m,
Turret Rotation: 420° non-continuous with electric stop,
Platform Boom: 200°

Additional Features:
Start/Stop system for the vehicle engine in the platform and on the emergency control panel with start interlock when a gear is engaged,
Lightweight tower and boom,
Fine-grained steel telescopic boom with platform boom, movement range from -8° to +80°,
Cable routing inside the telescope,
Hydraulic system operates with 195 bar operating pressure, oil flow rate 17 liters per minute,
Electro-hydraulic emergency lowering from the platform via a separate 12-volt pump, powered by the vehicle's second battery,
Double insulation against 1 kV,
Inclinometer,
Hydraulic pump mounted on the auxiliary drive of the vehicle engine,
Two supports with a support width of 2,450 mm (outer edge of platform),
Patented hydraulic axle lock,
Platform boom with a rotation range of 200°,
2-person fiberglass platform, dimensions approx. 1,200 x 766 x 1,155 mm,
Including insulation according to DIN VDE 0682-742 "Aerial work platforms for working on live parts up to AC 1000V and DC 1500V",
Flashing beacon with protective cage under the work platform,
230V cable with socket in the work platform,
Sensitive, electric proportional control on the work platform for all movements,
Proximity switches instead of mechanical switches,
Remote control on the tower with a 7m cable,
Length sensor system for optimizing reach,
Function switches in the driver's cabin for auxiliary drive and flashing lights,
1x LED flashing beacon on the work platform,
2x rotating beacon, right and left at the front top,

Mercedes Benz Sprinter II Van 516 CDI:

3x remote key,

2x rear double doors (opening width 270 degrees),

1x sliding door, right,

Leaf spring suspension, rear,

Disc brakes,

Electric windows,

Electric mirror adjustment,

Heated mirrors,

FM/USB/CD radio,

Parrot hands-free system,

Air conditioning,

Rearview camera,

Auxiliary heater,

Differential lock,

VDO tachograph,

ASR,

ESP,

Auxiliary drive,

Daytime running lights,

Load compartment partition with door and window in door,

Rubber floor mats,

Driver's seat armrest, right,

Passenger seat armrest, left,

Storage compartments above the windshield,

Storage compartments on the dashboard,

2x rotating beacon on top of the vehicle rear,

2x dual warning lights (orange) on top of the vehicle rear,

LED license plate light,

Waeco Sinus inverter,

2x 24V sockets in the cargo area,

Bott shelving/cabinet system,

4x tie-down points per side in the cargo area,

Interior lighting i
