MAN TGX 33.510 MAN TGX 33.510 6x4 BB LogLift 150 Z

- Heated mirrors
- Leaf spring suspension
- Brake booster
- Differential lock
- High beam headlights
- Low noise
- Speed limiter
- Intarder
- Air conditioning

HD TRUCK TO GO – immediately available new and used vehicles in stock at the Porta Westfalica location, fully equipped directly from the manufacturer. Financing available in 19 European countries, trade-ins accepted.

Vehicle data
• MAN TGX 33.510 6x4 BB CH
• Emission standard: Euro 6e
• Main wheelbase: 4,800 mm

Engine
• MAN Diesel engine D2676 LFAF
• 6-cylinder in-line diesel engine
• Power: 375 kW / 510 hp
• Maximum torque: 2,600 Nm

Transmission and drive
• MAN TipMatic 12.28 OD
• MAN TipMatic Efficiency driving program up to 70,000 kg
• Heavy-duty transport driving program up to 90,000 kg
• Axle ratio i = 3.63
• Differential locks on both driven rear axles

Braking system
• Electronic Braking System (EBS)
• Anti-lock Braking System (ABS)
• Full brake assist
• MAN EVBec high-performance engine brake, steplessly adjustable
• MAN Retarder Eco Cool, speed-dependent and steplessly adjustable
• Disc brakes on the front axle
• Drum brakes on both rear axles

Trailer coupling and body preparation
• RINGFEDER trailer coupling type RF40/G150A
• 40 mm trailer coupling for semi-trailer
• 2-line trailer brake connection
• Rear crossmember with drilling pattern × 100 mm
• Interface for vehicle data FMS
• KSM interface for data exchange with the body
• Engine intermediate speed control
• Preparation for engine start-stop function on the body
• Lateral underrun protection
• Round rear underrun protection
• 2 chock blocks with holder

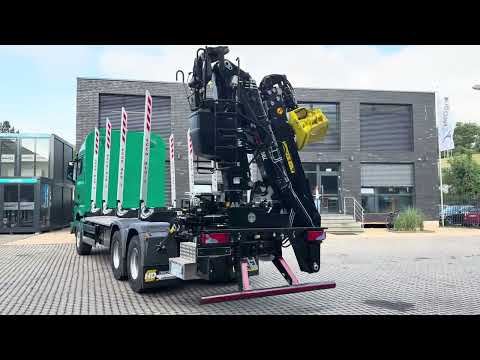

Timber loading crane LOGLIFT F 150 ZTi 93 – Double telescope HPL
• Long life for your hoses!
• Hose routing with swivel fittings, elevated seat electrically heated,
• with safety belt, 4 work lights
• LED, 2 mounted on the crane elevated seat
• and 2 mounted on the knuckle arm. Three additional free functions are available on the electrical control box. C3
• – CE equipment 2-circuit – Tilt cut-off for crane hydraulics 2-circuit,
• including TWI monitoring, transport position arm system and outrigger boom, mounted, and
• additionally cab display as a kit (CWI). Outrigger control from the elevated seat, electrically,
• 4 functions and additionally operable directly at the valve,
Itjdjzm U A Ropfx Ap Aen
• designed as a two-hand control.
• Crane control 2 + 2, elevated seat control with
• 2 cross levers and 2 foot pedals
• 2-circuit hydraulic system with double-acting lifting cylinder

Platform body: HD Truck Solutions
• 8 stakes (aluminum)
• Toolbox
• Tank access from the right and left side made of aluminum
• Loading area approx. 6800 mm

Your contact persons
• Denis Omeragic: German, English, Bosnian, Croatian, Serbian
• Henri Omeragic: German, Bosnian, Croatian, Serbian
• Harun Cevik: German, English, Turkish
• Jamila Azzi: French, Arabic
• Olga Tissen: German, Russian
• Karolina Cyburt: Polish
