Система крюкообразных рычагов

MAN TGS 41.440 MAN TGS 41.440 8x4 Abrollkipper + Kr...

= Additional Options and Accessories =

- Adaptive cruise control
- Heated mirrors
- Leaf suspension
- Brake booster
- Differential lock
- High beam
- Low noise
- Speed limiter
- Air conditioning
- PTO
- Reversing camera
- Sun visor
- Toolbox

= Notes =

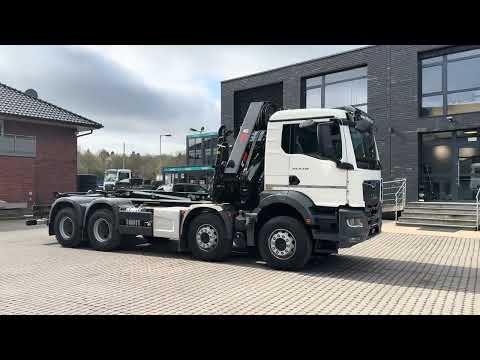

TGS 41.440 8x4 BB CH Euro6e Hooklift Tipper + Hiab 302-5 Crane

Vehicle Equipment:

MAN D2676 LF79 diesel engine (440 hp), 2,400 Nm torque, Euro 6e
MAN TipMatic 12.28 DD automatic transmission, MAN TipMatic Efficiency driving mode, up to 70,000 kg
Front axle tires: 315/80R22.5 steering axle tires optional (160 K)
Rear axle tires: 315/80R22.5 drive axle tires optional (154/150 K)
Front axle: 8,000 kg, non-driven, straight, steerable, not liftable
Ppjdpfxsyxy Ace Afgsp
Rear axle: 13,000 kg, drive axle with through drive, straight, not steerable, not liftable
300 l fuel tank capacity, right side – 35 l AdBlue tank capacity, right side
LED daytime running lights
Sun visor in front of windscreen
Automatic wiper operation with rain sensor (auto-wiper)
Central locking
Exterior mirrors electrically adjustable with maneuvering aid, heated
Driver comfort seat, air-suspended
Multifunction steering wheel, height and tilt adjustable
Professional 12.3-inch instrument cluster
Air conditioning
"Moon Grey" color scheme for cab interior
Electronic stability program
Traction control
Cruise control
Adjustable speed limiter (engine speed limiting)
Emergency brake assistant (EBA)
MAN Media System Navigation Advanced 7-inch
MAN Sound System Advanced
Trailer coupling

Crane: HIAB X-HiPro 302 EP-5

- Cable winch
- Radio remote control
- Hydraulic lines for attachments


Hooklift Body:

MULTILIFT Hooklift OPTIMA 20S56
Lifting and tipping capacity: 20,000 kg
Equipment length: 5,600 mm (G-dimension)
Container length (L1): 5.0 – 6.5 m
150-liter aluminum hydraulic oil tank, large return filter 440 l/min
Hydraulic system consisting of:
- Double-acting cylinders with load holding valves and hose rupture protection directly on the cylinders
- Machine control via compact control panel with integrated indicator lights and electro-magnetic valve control (PLC control) with two-speed operation (fine/fast) in both directions for the lifting cylinders
- Tipper frame end-position damping for gentle container placement on the vehicle
- CE safety package
- Tipper position indicator

If you have further questions, our team is available in the following languages:

Wir sprechen Deutsch
We speak English
Nous parlons français
Mówimy po polsku
Мы говорим по-русски
Govorimo Srpskohrvatski

= Further Information =

Year of manufacture: 2025
Front axle 1: steerable
Front axle 2: steerable
Number of cylinders: 6
gross vehicle weight (GVW): 41,000 kg
Crane: Hiab 302-5
Body make: MultiLift 20s56
APK (main technical inspection): New TÜV upon delivery
