MAN TGS 35.520 TGS 35.520 8x4 Abrollkipper + Kran ...

- Adaptive cruise control system
- Heated mirrors
- Leaf suspension
- Brake booster
- Differential lock
- High beam
- Speed limiter
- Intarder
- Air conditioning
- Air-suspended seats
- Reversing camera
- Sun visor
- Lane departure warning system
- Toolbox

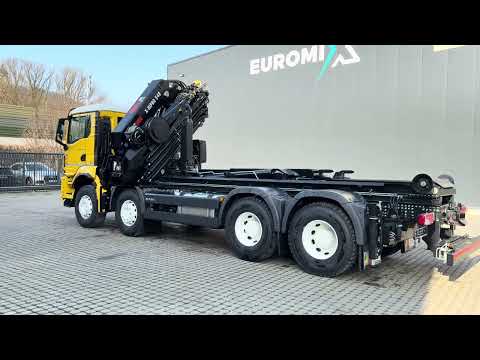

TGS 35.520 8x4 BB Euro6e hooklift truck + X-HIPRO 548E-8 winch

Vehicle Equipment:

Diesel engine MAN D2676 LFAX, 382 kW (520 HP) output, 2,650 Nm torque, Euro 6e
MAN TipMatic 12.28 OD, MAN TipMatic Efficiency driving program, up to 70,000 kg
MAN PriTarder high-performance engine brake
Professional 12.3-inch instrument cluster
ROCKINGER Type 400 G 150A
with MAN EVBec, multi-stage
3,205 mm main wheelbase
1,795 mm wheelbase between front axles
1,400 mm wheelbase between rear axles
2nd front axle tires (optional) 385/65R22.5 steerable S+G TL (160 K)
Rear axle tires (optional) 315/80R22.5 drive S+G TL (154/150 K)
Ledjyr R Smopfx Aaxohf
Front axle, 9,200 kg, non-driven, straight, steered, non-liftable
Rear axle HPD-1353, 13,000 kg AP axle
37,000 kg permissible total vertical technical load
300 l fuel tank volume, left side; 35 l AdBlue tank volume, right side
Electronic braking system (EBS)
Anti-lock braking system (ABS)
Emergency brake signal, automatic hazard light activation
Daytime running lights, LED
Mirror package, exterior mirrors, electrically adjustable, heated, front mirror
Driver seat package Plus, air-suspended
Multifunction steering wheel, height and tilt adjustable
Cab painted in pure white RAL 9010

HIAB X-HIPRO 548E-8 Crane with winch

HIPRO – The intelligent workhorse
SL-ANALOG STANDARD
Warning lamp on outrigger cylinders
External information display for Space
3-point linkage
LSS-V – Automatic swing damping for vertical stabilization (ADV)
ADV – Vertical crane arm damping
Joint type E – Boom system with linkage for lifting and knuckle cylinders via knee lever joints
The E-joint system consists of a lever connection (knee joint) between crane column and lifting arm, and between lifting and knuckle arm.
The X-function of the crane arm
8 hydraulic extensions, E boom system
Flexible cylinder positioning
The hydraulic cylinders on most HIAB cranes can be mounted either on top or on the side, allowing customers to configure their crane for specific applications. Optional brackets for retrofitting extension cylinders are available.
Guaranteed cylinder sequencing
Internal hose and pipe routing with hose reel
Comfort unloading with vibration damper
PFD – "Oil for all" system
XSDrive radio remote control
Universal SPACE system
4.60 m = 9,900 kg
6.10 m = 7,200 kg
7.80 m = 5,300 kg
9.60 m = 4,100 kg
11.40 m = 3,300 kg
13.40 m = 2,680 kg
15.50 m = 2,240 kg
17.50 m = 1,940 kg
19.60 m = 1,720 kg

MULTILIFT Hooklift OPTIMA 25S56
Lifting and tipping capacity 25,000 kg
Device length 5,600 mm (G-dimension)
Container length (L1) 5.0–6.5 m
150 l aluminum oil tank, large return filter 440 l/min
Hydraulic system comprising:
- Double-acting cylinders with load-holding valves
- Hose rupture protection directly on the cylinders...

Объявление было переведено автоматически. Возможны ошибки перевода.
