Mercedes-Benz Econic 2633 VEMA 323 TFL

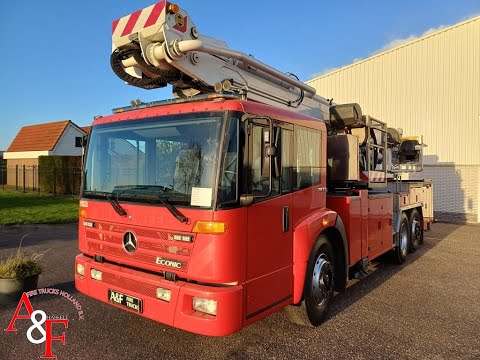

Mercedes-Benz Econic 2633 Aerial Platform – VEMA 323 TFL

Fully Operational Fire Service Aerial Platform
For sale: an excellently maintained Mercedes-Benz Econic 2633 equipped with a VEMA 323 TFL aerial platform. This unit comes directly from a Dutch fire department and has always been professionally serviced. The vehicle has been fully and independently tested on all aerial platform functions this month and holds a valid inspection (APK/TÜV) until 31-10-2026.
The aerial platform is fully operational, well-equipped and ready for immediate use.
_____
🔧 Vehicle Technical Specifications
• Make / Model: Mercedes-Benz Econic 2633
• Engine Power: 240 kW
• Transmission: Allison automatic gearbox
• Fuel Type: Diesel
• Axle Configuration: 6x2
• Wheelbase: 525 cm
• Net Weight: 21,380 kg
• Payload: 5,620 kg
• Date of Registration: 15-03-2006
• Mileage: 45,150 km
• Inspection valid until: 31-10-2026
• Emission Class: Euro 3
Tyres (315/80R22.5)
• Front: 100%
• Rear: 100%
_____
🔝 Aerial Platform – VEMA 323 TFL
This VEMA aerial platform is designed for professional rescue and firefighting operations and is equipped with all modern functionalities.
🛠 Construction & Structure
• Rescue cage fully made of stainless steel, with anti-slip flooring
• Cage swivels 45° to both sides
• Water monitor/water cannon mounted on the cage (3,800 l/min / 16 bar)
• Cage control panel with graphic display
• Hydraulic telescopic boom
• Turntable with endless rotation
• Safety railings and certified fall-protection anchor points
_____
🚑 Rescue & Ambulance Features
• Bracket for rescue stretcher (“De Mooij / Strijker frame”) inside the cage
• Under-cage lifting point with strap holder for stretcher operations
• Built-in air connection / manifold air supply in the cage
• Integrated rescue platform
_____
💦 Firefighting Features
• Fixed water monitor mounted on the cage
• Adjustable horizontally and vertically
• Operable from the cage or via radio remote control
• Designed to neutralize recoil forces of the water stream
_____
⚙️ Automatic Functions
The VEMA 323 TFL is equipped with several automatic assistance systems:
1. Automatic Horizontal Leveling
The aerial platform levels itself when deploying the stabilizers:
• Prevents incorrect operation
• Speeds up setup time
• Increases operational safety
2. Automatic Cage Leveling
The cage remains automatically horizontal within 1–2° deviation.
Active during lifting, lowering and rotation.
3. Automatic Return Function
With one button press, the boom automatically returns to transport position.
_____
Iiodpfx Aexxmluofhsi
📡 Controls
• Radio remote control included
o Allows external adjustment of the aerial platform
o Ideal for rescue situations or limited visibility
• Operation from both the cage and the main ground control station
_____
📏 Dimensions (according to manual)
• Overall height: approx. 3.25 m
• Transport width: approx. 2.50 m
• Vehicle length: approx. 11.20 m
• Maximum working height: 32 m
• Maximum cage load: 400 kg incl. monitor
• Cage dimensions: approx. 2 × 1.1 m
