Трёхсторонний самосвальный прицеп

MÜLLER-MITTELTAL KA-TA-R 11,9TandemDreiseitenkipper Auffahrrampen

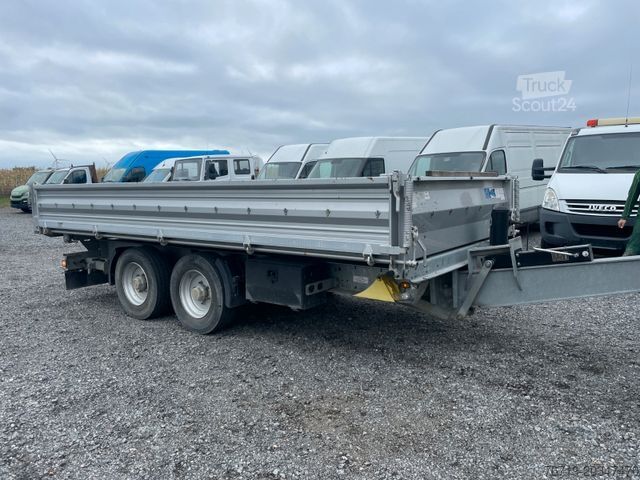

For sale is a Müller Mitteltal tandem three-way tipper trailer with loading ramps (model TA-2, KA-TA-R 11.9).

Technical specifications:
- Internal dimensions: approx. 5,000 mm x 2,400 mm x 500 mm
Kedpfjxp Twrsx Ab Ssnc
- Overall dimensions: approx. 7,150 mm x 2,550 mm x 1,550 mm
- Permissible total weight: 11,900 kg
- Payload capacity: approx. 8,830 kg
- Wheelbase: 990 mm
- Tyres: 235/75 R17.5-inch
- Loading height: approx. 950 mm
- Axles from renowned manufacturers
- Suspension system
- Braking system
- ABS brake system
- Braking system according to EC Directive 71/320/EEC, etc., with ABS 2S/2M and spring-actuated parking brake
- Chassis axles from premium brands, S-cam brakes, large, low-maintenance tandem compensation system with 80 mm wide parabolic springs

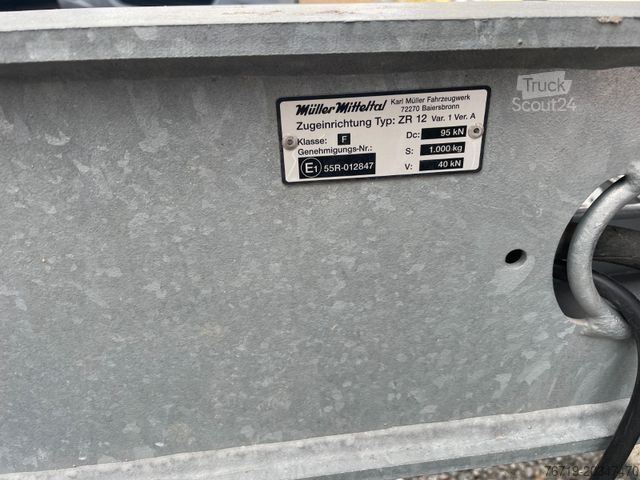

- Drawbar with infinitely variable height adjustment via winch. All supply lines to the towing vehicle are routed protected within the hot-dip galvanized drawbar.
- Chassis with 2 storage compartments for aluminium ramps, hot-dip galvanized.
- Tipping system: three-way tipper system with motorized hydraulics
- Tipper body floor made of fine-grained steel
- Side walls laser-welded from fine-grained steel, front wall fixed from smooth sheet metal, side walls with internal tube reinforcements and gas struts. Side and rear walls can pivot, fold down, and be removed (central locking). Rear wall with supporting cables.
- Tipping angle to the side and rear: 48°
- etc.

Viewing appointments and test drives by prior telephone arrangement.

All information provided online is non-binding. They do not constitute warranted characteristics. The seller is not liable for typographical or data transmission errors. Subject to change and prior sale.
