Нивелировочная машина

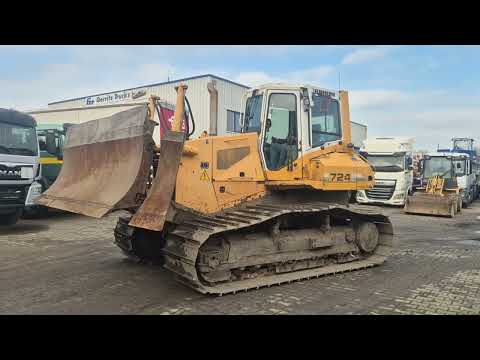

Liebherr PR 724 LGP

Liebherr PR 724 LGP – Technical Data
General Information
Manufacturer: Liebherr
Model / Type: PR 724 LGP
Serial Number (Vehicle Identification Number): VAU0755EZT010246
Year of Manufacture: 2008
Gross Vehicle Weight: 18,200 kg

Engine (PR 724 Litronic / LGP)
Engine Type: Liebherr Diesel Engine D 924 TI-E
Emission Standard: 97/68/EC Stage II, EPA / CARB Tier 2
Engine Power (ISO 9249): 118 kW / 160 hp
Engine Power (SAE J1349): 118 kW / 158 hp
Engine Power (Nameplate): 120 kW
Rated Speed: 1,800 rpm
Cylinders: 4-cylinder inline engine
Displacement: 6.6 liters (403 cu in)
Cooling: Water-cooled, turbocharged, intercooler (air-to-air)

Fuel Injection: Direct injection, inline fuel injection pump with mechanical governor
Drive / Transmission
Travel Drive: Infinitely variable hydrostatic travel drive
Drive per Track: Independent
Steering: Hydrostatic
Control: Single lever control (driving, steering, and counter-rotation)

Travel Speeds
Speed Range 1: 0 – 4.0 km/h (reverse 4.8 km/h)
Speed Range 2: 0 – 6.5 km/h (reverse 7.8 km/h)
Speed Range 3: 0 – 11.0 km/h (forward and reverse)
Max. Drawbar Pull: 227 kN at 1.5 km/h

Hydraulics
Hydraulic System: Load-sensing hydraulics
Pump Type: Axial piston pump (swash plate design)
Max. Flow Rate: 174 l/min
Max. Working Pressure: 200 bar

Undercarriage / Tracks (LGP)
Standard Track Shoe Width:
711 mm (28”)
812 mm (32”)
Ground Pressure (LGP): 0.31 kg/cm²

Dimensions
Height over Cab: 3,197 mm
Overall Length (without attachments): 4,173 mm
Track Gauge (track center distance): 2,084 mm
Width over Tracks: 2,998 mm
Ground Clearance: 475 mm

Weight
Gross Vehicle Weight: 18,200 kg

Blade / Equipment
Blade Type: 6-way PAT blade
Blade Width: 3,790 mm
Blade Height: 1,100 mm
Blade Capacity (ISO 9246): 3.39 m³
Blade Capacity (depending on design): 3.17 – 4.27 m³

Fluid Capacities
Fuel Tank: 365 liters
Cooling System: 30 liters
Engine Oil: 19 liters
Hydraulic Tank: 162 liters
Final Drives: 18.5 liters per side

Electrical System
System Voltage: 24 V
Alternator: 55 A
Batteries: 2 × 110 Ah / 12 V
Podpfx Ageyf Hn Ro Tepl

Cab & Noise Levels
Cab: ROPS (ISO 3471) and FOPS (ISO 3449)
Cab Tilting: 40° rearward
Sound Pressure Level at Operator’s Position: 77 dB(A)
Guaranteed Sound Power Level: 109 dB(A)

= Additional Information =

Year of Manufacture: 2008
Drive: Crawler
Operating Weight: 18,200 kg
CE Certified: yes
For further information, please contact Klaas Gerrits, Peter Gerrits, Henk Gerrits, or Mr. Gerrits.
