BT Fahrerstand Hochhubwagen Elektro SPE160 Triplex

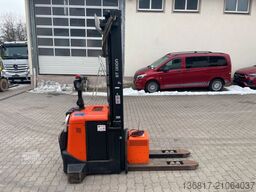

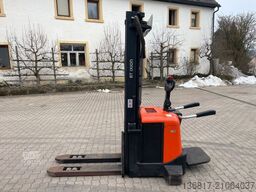

BT Stand-on High Lift Pallet Stacker Triplex Electric SPE160 1600 kg
Full Free Lift
Lift: 5,310 mm

Drive: Electric,
Lead-acid batteries,
Battery voltage, nominal capacity: 24V / 255-425 Ah,
Operation: Pedestrian with foldable rider platform,

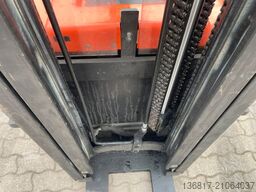

Mast: Triplex,
Load capacity: 1,600 kg,
Load center: 600 mm,
Lift: 5,310 mm,
Lift height: 5,400 mm,
Mast height retracted: 2,405 mm,
Mast height extended: 6,055 mm,
Load distance, fork back to center of fork rollers: 786 mm,
Wheelbase: 1,440 mm,
Dead weight: approx. 1,340 kg without battery,
Weight with batteries: approx. 1,710 kg
Axle load with load (drive wheel/support wheels/fork rollers): 620/610/1,810 kg,
Ncedpfoyc Ingox Adnol
Axle load without load (drive wheel/support wheels/fork rollers): 390/640/410 kg,
Tyres (drive wheel/support wheels/fork rollers): Powerfriction/Vulkollan/Vulkollan,
Front tire size: diameter 215 mm,
Rear tire size: diameter 125x50 mm,
Number of wheels front/rear (x=driven): 1x + 2/2,
Access control via code,
Mast height retracted: 1,745 mm,
Full free lift,
Platform standing height: 150 mm,
Tiller height in operation: 1,435 mm,
Fork height lowered: 90 mm,
Overall length with rider platform folded: 2,200 mm,
Overall length with rider platform extended: 2,600 mm,
Overall width: 1,150 mm,
Fork dimensions: 70/180/1,150 mm,
Clear distance between forks: 210 mm,
Outside fork width: 570 mm,
Ground clearance with load under mast: 24 mm,
Ground clearance at center of wheelbase: 24 mm,
Aisle width for pallet 1,000 x 1,200 crosswise: 2,253 mm,
Turning radius: 1,686 mm,
Travel speed with/without load: 7 / 8 km/h,
Lifting speed with/without load: 0.12 / 0.24 m/s,
Lowering speed with/without load: 0.35 / 0.34 m/s,
Max. gradeability with/without load: 12 / 10%,
Service brake: Electromagnetic,
Drive motor power S2 60 min.: 1.7 kW,
Lift motor power at S3 11%: 3.0 kW,
Capacity at load center 600 mm and lift height:
800 kg at 5,400 mm,
950 kg at 4,800 mm,
1,350 kg at 3,750 mm,
1,600 kg at 3,350 mm,

Charger:
Manufacturer: Toyota BT Easycon,
Type: E 24V 60A 430Ah,
In: 1N/PE 230V 50Hz 2.39kVA 10.03A,
Battery: 421 - 560 Ah,
Year: 2012,
Weight: 29 kg,

Device features:
Drive control type: BT Powerdrive,
Electronic fingertip buttons,
Electronic regenerative braking (energy recovery),
Electronic speed control,
Operator safety,
Storage compartments,
Automatic shutdown,
Programmable performance parameters,
Easy access for maintenance,
Sensi-lift,
Foldable rider platform,
