Decker Containerbau Kombicontainer, Feuerwehr, auf ABR

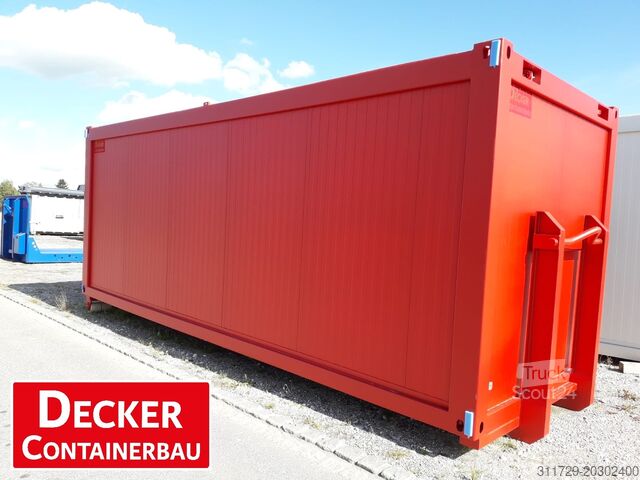

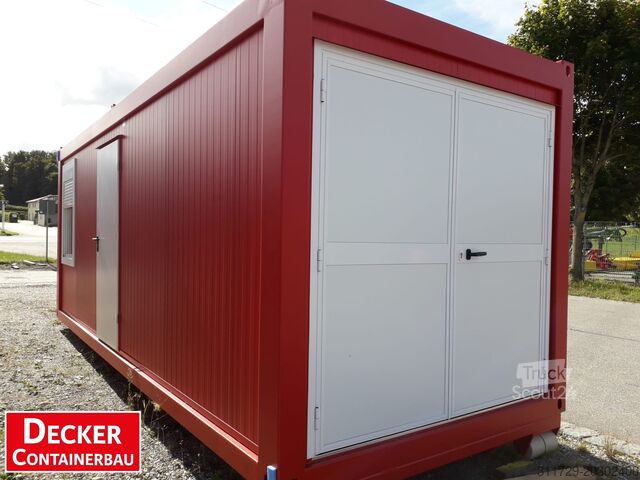

Office container, crew container for the fire brigade
Delivery time approx. 6-8 weeks after receipt of order

Interior room height 2,225 mm
Exterior: L/W/H 6,500 x 2,438 x 2,520 mm
Mobile room element 6500 - 5500 mm office with steel floor and 1000 mm warehouse with steel floor
Roll-off frame 180 mm, RAL 3020 traffic red
Replaceable plastic rollers, cross beam 2300 mm
- Panel construction, panel width 1145 mm
- Base frame made of 3 mm steel profile
ISO container corners welded 8 mm, dimensions according to ISO standard,
- Corner columns made of cold-rolled steel profile at least 3 mm thick,
Inside insulated with mineral wool
- Floor 100 mm mineral wool, vapor barrier PE film 0.2 mm,
Gedpfx Aboxnwwao Sjuh
- Steel corrugated sheet 3/4 mm, painted in RAL 7016
Floor load capacity: 2.5 kN/m2
- Roof frame: 3 mm cold-formed, welded steel profile
- Roof: galvanized flat sheet 0.55 mm, mineral wool 120 mm
u-value: 0.36 W/m2K, vapor barrier PE film 0.2 mm
Drainage through flexible drains in the corner columns
coated chipboard white 10 mm
Roof load capacity: 1.5 kN/m2 (local snow load to be observed by the customer)
- External walls: PU panels 50 mm,
sheet metal/sheet metal micro-lined on the outside / smooth on the inside, u-value: 0.42 W/m2K
- Painting: steel parts such as floor, roof frame and
posts RAL 3020 traffic red
Exterior panels in RAL 3020 traffic red
Interior RAL 9002 Grey white

WAREHOUSE
- Floor 100 mm mineral wool, vapor barrier PE film 0.2 mm,
- Steel checker plate 3/4 mm, painted in RAL 7016 anthracite grey

BASIC EQUIPMENT
- 1 x sheet steel door in RAL 9002 grey white, insulated, passage light W/H 820x2000 mm
complete with handle set and cylinder lock with 3 keys

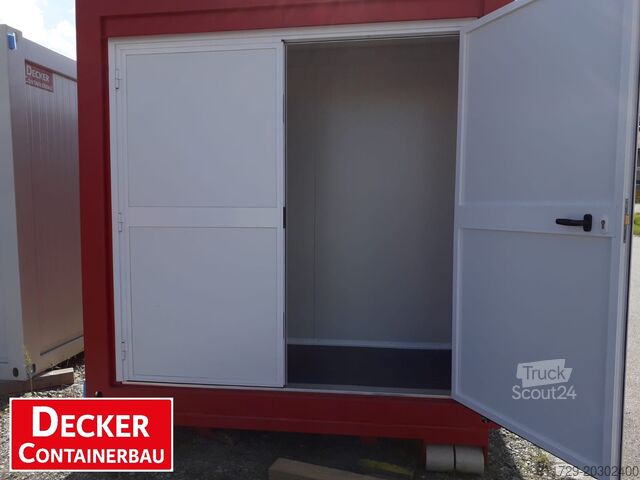

- 1 x 2-wing sheet steel door in RAL 9002, insulated, complete with handle set and cylinder lock with 3 keys
- 1 x plastic tilt/turn window RAL 9002 grey white with external roller shutter,
frame white, Uw value 1.6 W/m2K

ELECTRICAL INSTALLATION
- in accordance with applicable ÖVE / VDE standards
- 1 x entrance and exit with CEE connection, 380 V / 32A / 5-pole
recessed in the upper cross frame
- 1 x distribution box with FI and circuit breakers 13A / 16A
- 2 x LED light strips, 5m each, dynamic white
- 2 x LED light strips, 1m each, dynamic white
- 2 x light switches
- 4 x double sockets
- 2 x single sockets
- 1 x wall convector 2 kw
- 2 x earthing conductors
Cables installed flush

from branch 84427 St. Wolfgang
-Subject to prior sale-
Payment conditions: 100% before loading.
The goods remain our property until full payment has been made.
Our general terms and conditions apply.
Offer is subject to change without warranty or guarantee.

We would be happy to provide you with a non-binding offer.

You can find our complete product range on decker-containerbau.
